20.2х20.2хH
H=12.9 mm, 12.0 mm, 10.3 mm MXOCR
|
MXOCR

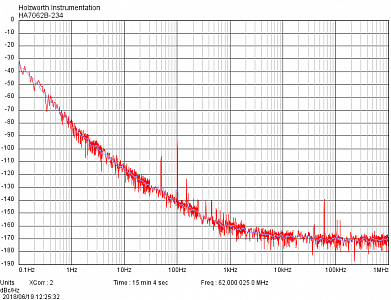

low phase-noise series
The MXOC series comprises high stability OCXO designs packaged in a variety of standard small cases. The oscillators operate in 5 - 150 MHz frequency range (on the fundamental mode) providing high frequency stability at very low phase-noise level and phase jitter.
|
Basic electrical parameters
Operational frequency range: 5 - 150 MHz (fundamental)
Temperature stability at 10 MHz in (-40 +85)⁰C: to 1 ppb Aging at 10 MHz: to 0.15 ppb/day and 20 ppb/year Allan variance at 1 s: to 5E-12 G-sensitivity (worst direction): to 0.5 ppb/g Power consumption: < 1.2W Input voltage: 3.3V, 5V or 12 V Output waveform: CMOS, sine wave |
|
