35.4х26.7хН
Н=12.5 mm,
10.3 mm
MXOCE
MXOCE
low phase-noise series
The MXOC series comprises high stability OCXO designs packaged in a variety of standard small cases. The oscillators operate in in 5 - 150 MHz frequency range (on the fundamental mode) providing high frequency stability at very low phase-noise level and phase jitter.
MXOCE MXOCI MXOCR MXOCS
Basic electrical parameters
Operational frequency range: 5 - 150 MHz (fundamental)
Temperature stability at 10 MHz in (-40 +85)⁰C: to 1 ppb
Aging at 10 MHz: to 0.15 ppb/day and 20 ppb/year
Allan variance at  1 s: to 5E-12
G-sensitivity (worst direction): to 0.5 ppb/g
Power consumption: < 1.2W
Input voltage: 3.3V, 5V or 12 V
Output waveform: CMOS, sine wave
Download full spec and ordering information

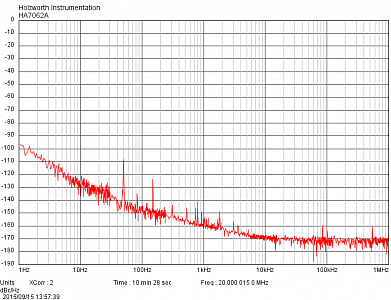

10 MHz20 MHz50 MHz100 MHz
